Accessible and lightweight LED grow lighting system

LED60

  • Superior performance in all climates
  • Energy and cost efficient
  • State-of-the-art technology

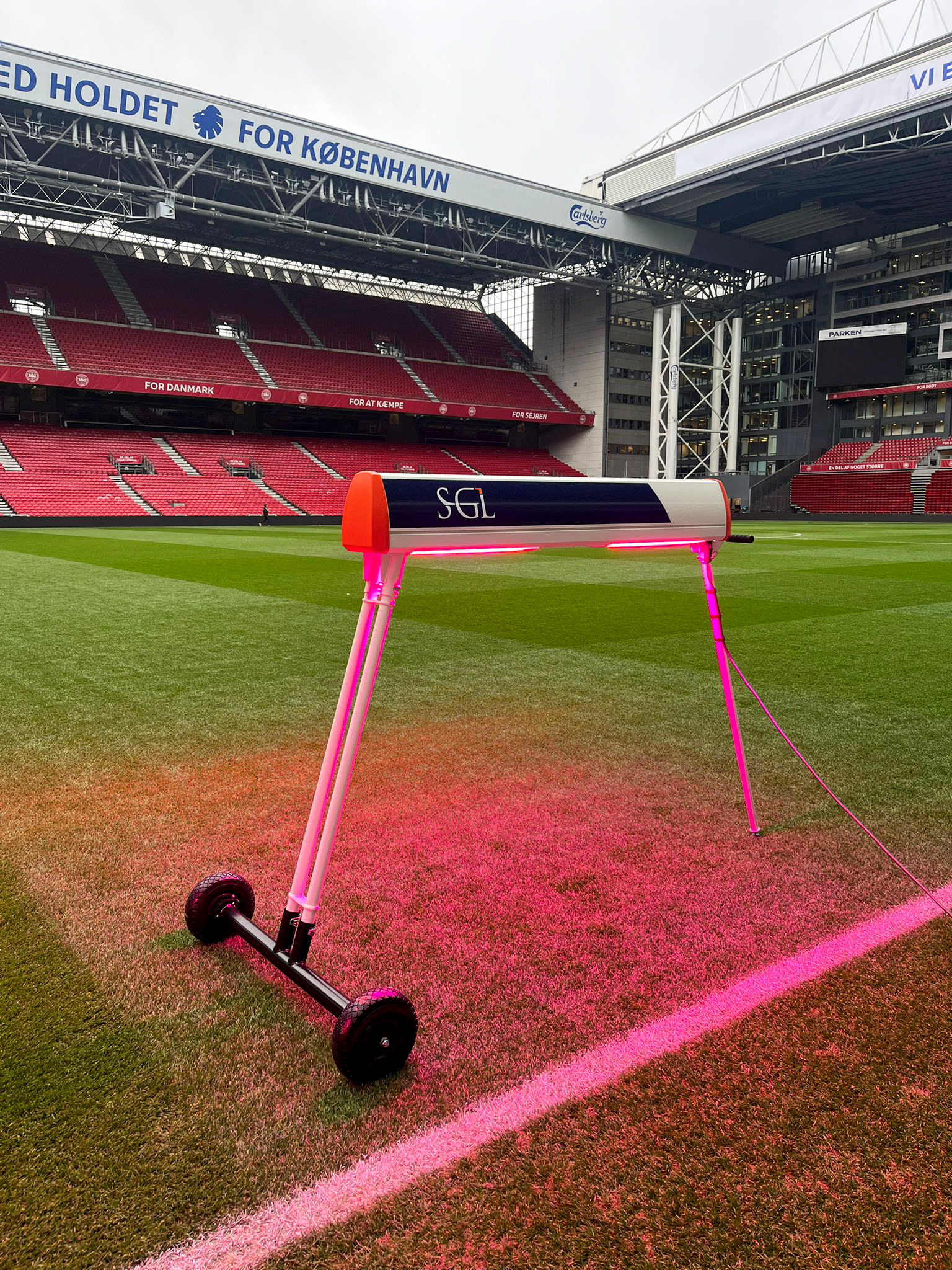

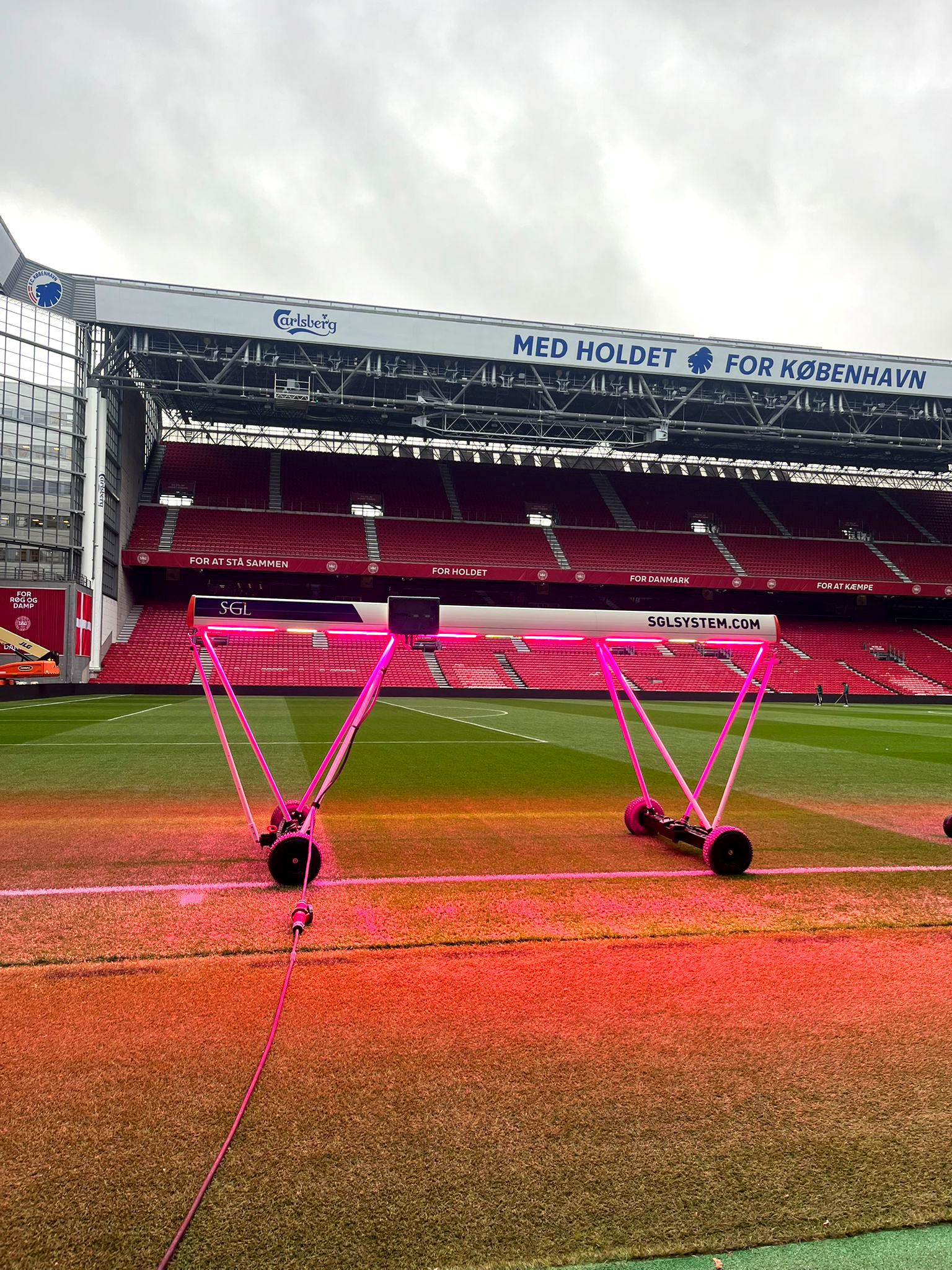

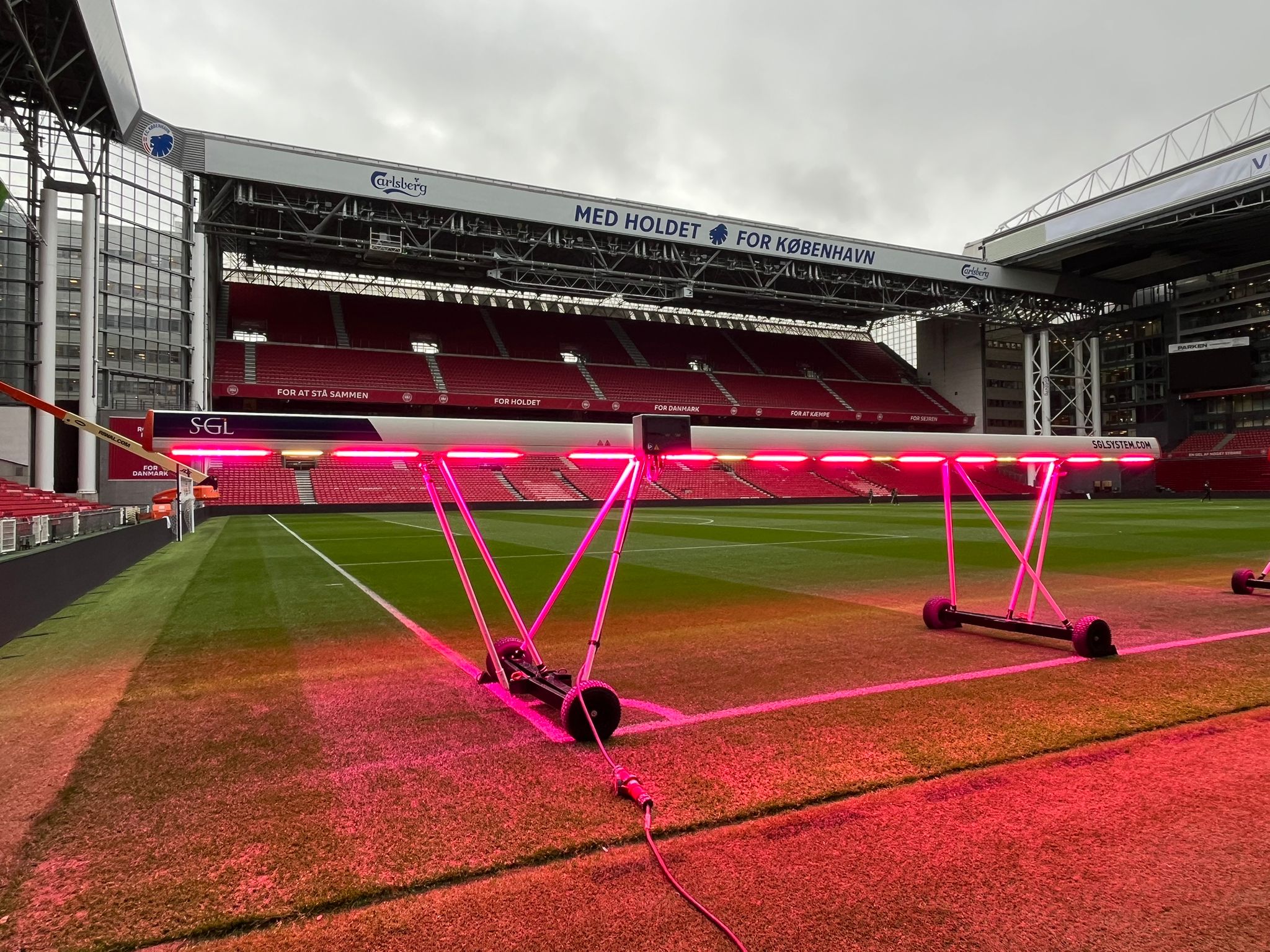

The LED60 is an accessible and lightweight grow lighting system, ideal for stimulating grass growth in high-wear areas of the golf course. Covering a 60 m² surface, it’s compact, easy to operate, and designed for quick deployment.

Its slim design and smart leg construction ensure minimal shadowing and superior uniformity in all climates. Featured with the most effective and energy-efficient light spectrum for grass growth, the LED60 offers independent control over light and heat, giving greenkeepers full flexibility and maximum efficiency in every application.

High-quality grass growth

Balance is key when it comes to high-quality grass growth. Light and heat must be present in the right quantity to stimulate photosynthesis, a plant process crucial for high-quality growth. The LED60 allows the greenkeeper to control light and heat radiation independently. This feature ensures that the operator can precisely adjust light and heat, and thus the growth climate, according to the grass’s needs, creating the optimal microclimate. This results in high-quality grass growth and a quick recovery of the golf course.

The LED60 covers a 60 square meter of playing surface. This enables the greenkeeper to treat a large area at once, shorten turnaround time, and maintain a consistent and safe playing surface all throughout the season.

Maximum energy savings

The independent control of light and heat allows the greenkeeper to create the optimal microclimate for high-quality grass growth in the most effective and efficient way possible. Because infrared only needs to be added when the temperature is too low, the greenkeeper can deploy the LED60 solely with light radiation during warm periods, and save energy. When the temperature allows for it and the LED60 is only used for lighting and not with infrared, 40% energy saving can be achieved.

Additionally, the LED60 utilises the most effective and energy-efficient light spectrum available, consisting of 95% red and 5% blue. The colours in this light spectrum are tuned to stimulate high-quality root and shoot growth as effectively and energy-efficient as possible.

Future-proof technology

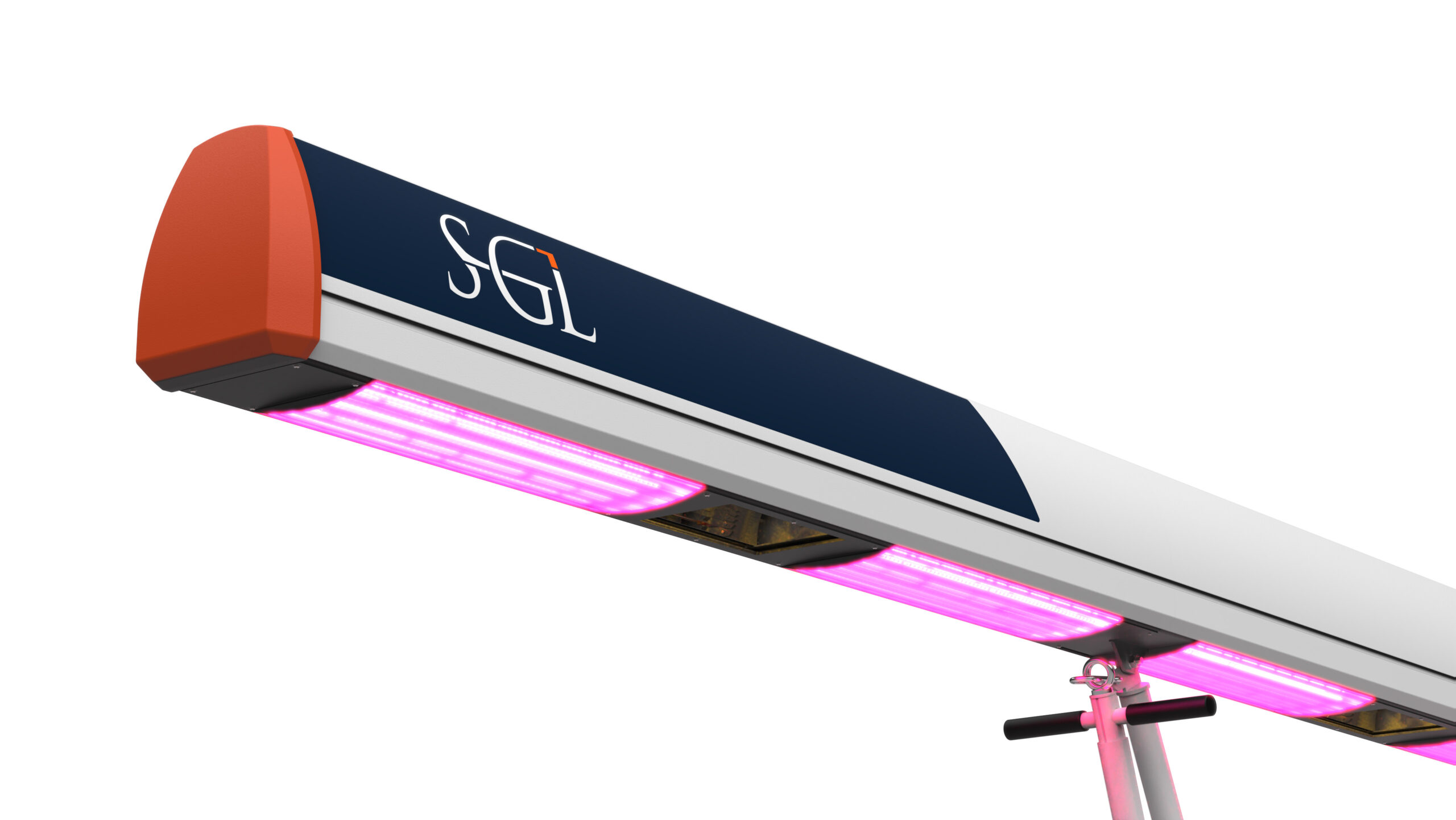

The LED60 utilises the latest grow lighting technology available and is constructed and produced in-house from high-quality materials. The LED armatures, IR fixtures and smart control system are designed from scratch and based on more than a decade of research to ensure unrivalled light and heat uniformity and superior performance in every climate, making the LED60 a futureproof grow lighting solution. The smart control system ensures that the unit is deployed as efficiently and effectively as possible, empowering data-driven pitch management measures and careful use of valuable time and resources.

The data-driven use of the LED60 grow lighting unit not only results in high-quality grass growth in the most energy-efficient way possible but also contributes to reducing the ecological footprint and the transition towards a more sustainable industry.

Close-up of the wheels of the LED30

Technical specifications

Treatment surface 646 ft²
Average light level 442 μmol/m²/s
Dimensions L 31’6″ x W 6’1″ x H 6’7″
Weight 661 lbs
Number and type LED fixtures 12x SGL LED 600W
Number and type IR fixtures 6x SGL IR 1300W
Voltage 277/480 VAC
Power consumption LED / LED+IR 7.2 kW / 15.0 kW
Type of plug 1 x 30 A Mennekes (4 poles, 5 wires)
Current LED / LED+IR 9 A / 18.4 A
Power cable specification 5 x 10 AWG
